Engcon Excavator attachments

Tiltrotators

Tiltrotators for Rail and Civil Excavator Applications

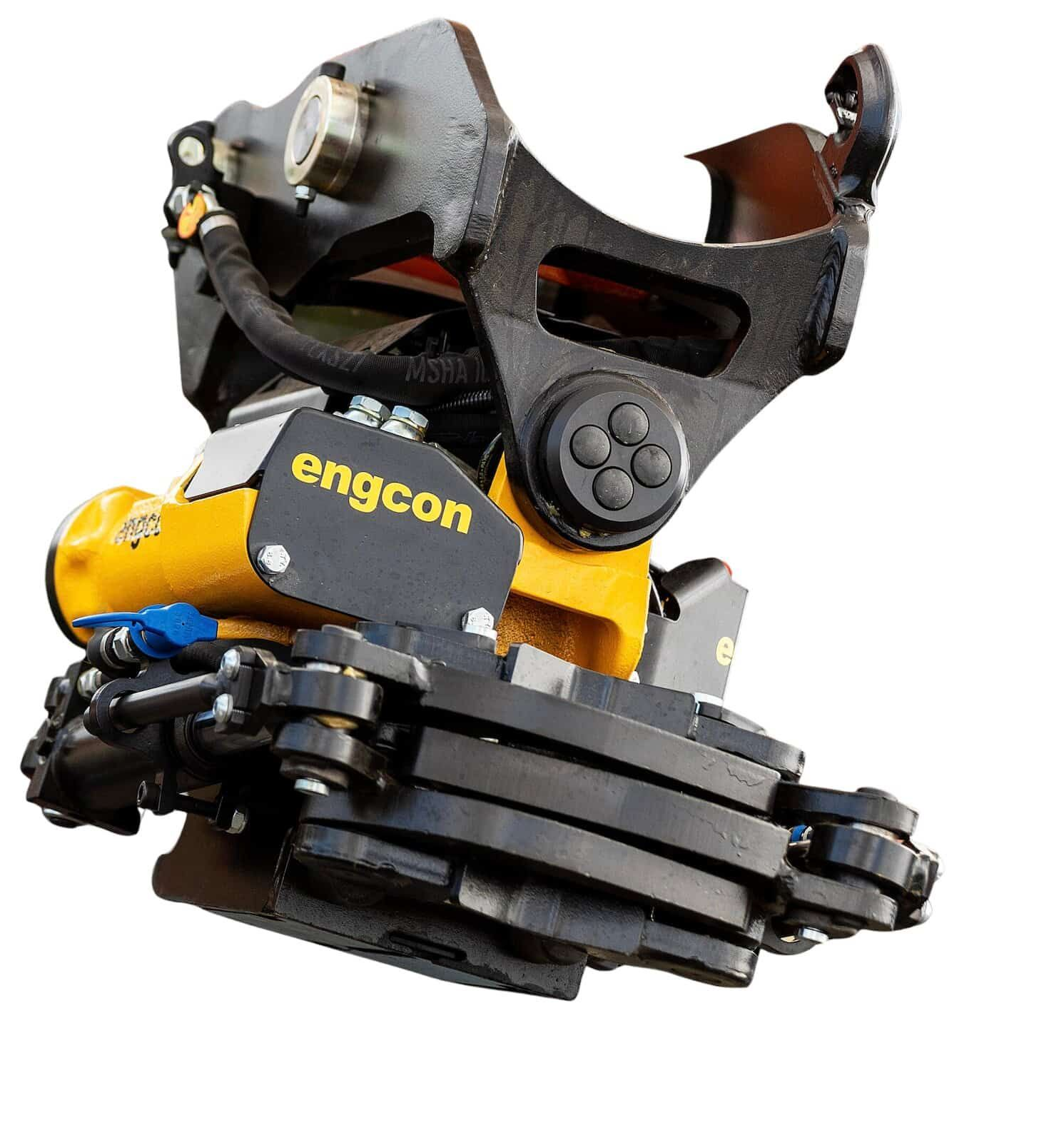

Engcon tiltrotators are advanced excavator attachments that provide 360° continuous rotation and up to ±45° tilt  at the tool interface.


Installed between the excavator arm and the attachment, the tiltrotator acts as a flexible joint, allowing the operator to position tools accurately at any angle without repositioning the machine.

This significantly increases


  • Control
  • Reach
  • Efficiency


particularly in confined or precision-critical work environments.


By reducing the need to reposition the base machine, tiltrotators improve overall productivity, minimise site disturbance, and enable a single excavator to safely and effectively perform a wider range of tasks.

Typical Applications

Engcon tiltrotators are well suited to a range of rail and civil construction tasks, including:

  • Rail maintenance and access works
  • Sleeper handling and formation work
  • Trenching, grading, and finishing
  • Utility installation in confined or restricted areas
  • Civil construction and bulk earthworks
  • Trackside asset handling and installation

Available Options

Quick Hitch (Sandwich Style) – Allows the tiltrotator to be mounted between the machine hitch and attachment for seamless integration.


Detachable Sorting Grab – Adds the ability to grip and handle materials such as pipes, poles, and debris directly at the tiltrotator.


Engcon Tiltrotator Model Range

Choose the correct model based on your excavator’s operating weight.

EC206 – For 4–6 tonne excavators
 Compact tiltrotator suited to mid-size machines working in confined or mixed-access environments.

EC209 – For 6–9 tonne excavators
A lightweight, low-profile option ideal for general civil works and utility applications.

EC214 – For 9–14 tonne excavators
Balanced performance for contractors needing versatility across civil, road, and infrastructure projects.

EC219 – For 14–19 tonne excavators
Designed for higher-duty applications where strength, stability, and precision are critical.

EC226 – For 19–26 tonne excavators
 Heavy-duty tiltrotator built for large-scale civil and infrastructure work with high attachment loads.

Integration & Support

Harrybilt Engineering supplies Engcon tiltrotators with a focus on:


  • Correct model selection
  • Integration
  • Application suitability for Australian rail and civil conditions.


Tiltrotators can be configured to suit a wide range of attachments and hydraulic systems, with options available for automatic hydraulic connections and in-cab operation.

Like to find out more about Engcon Tiltrotators?

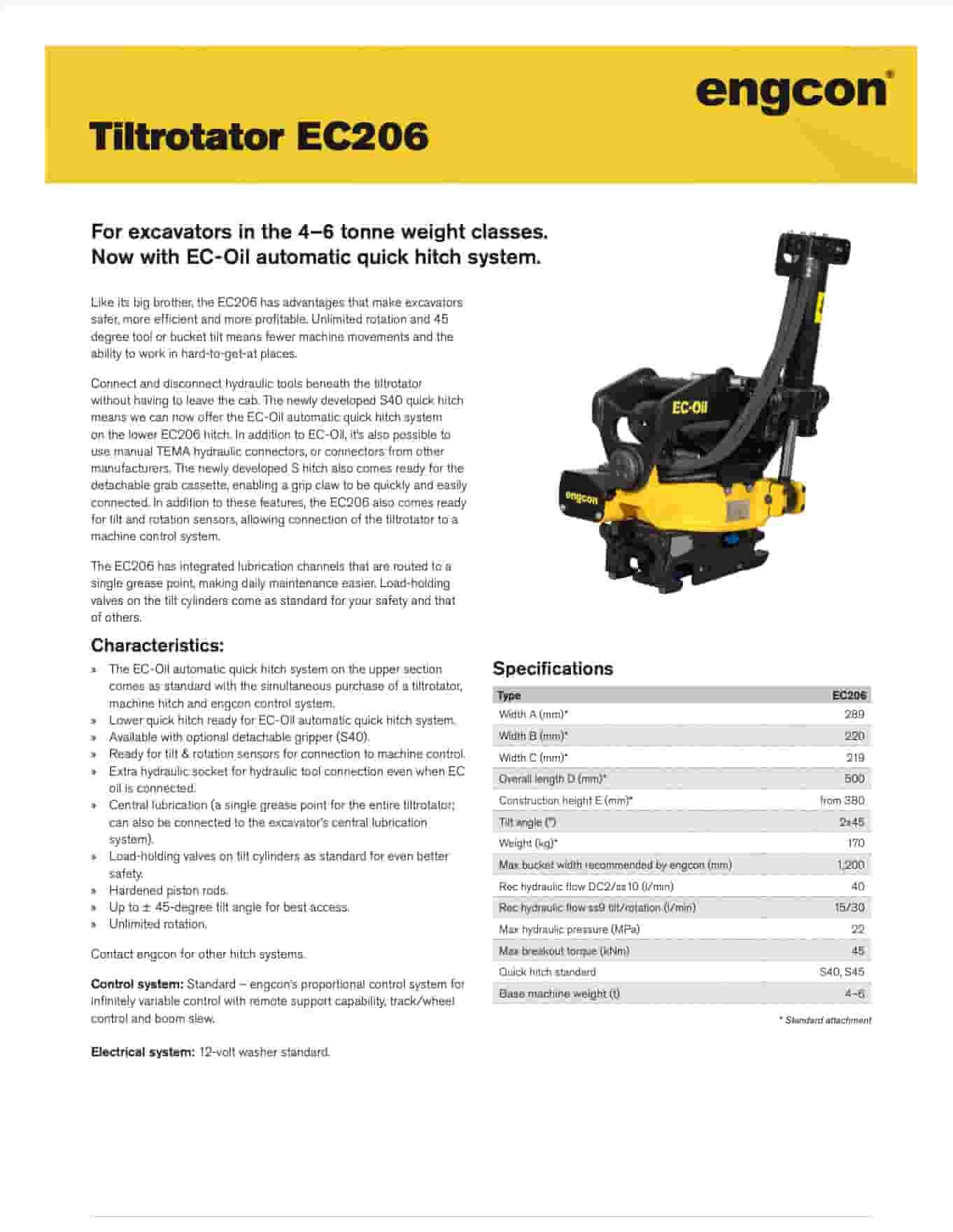

You can download the product brochure above for specifications and model information.


For assistance with model selection, integration with existing attachments, or to request a quote for rail or civil applications, please complete the enquiry form to contact our team.


You can also call +61 3 5339 4859 to speak with Harrybilt about your requirements.

Engcon Tiltrotators
