Rail Guidance SysteM | Road Rail Vehicles

Backhoes

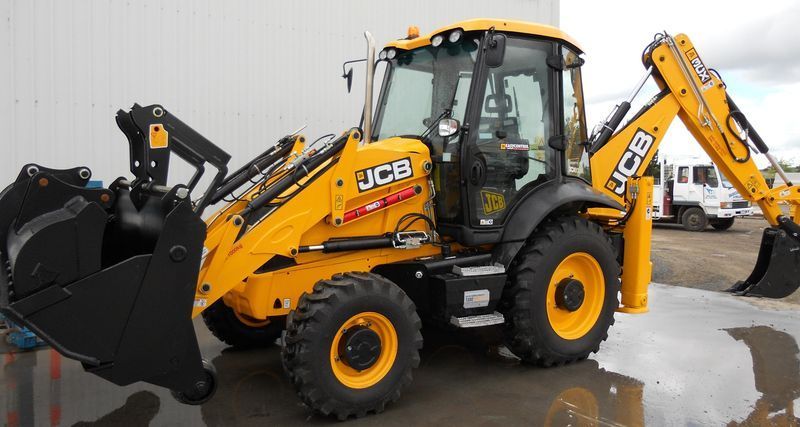

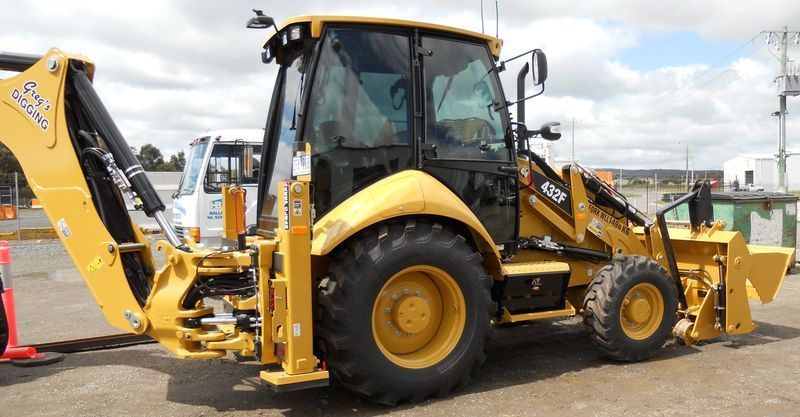

Harrybilt Engineering can fit a rail guidance system to various models of backhoe.


Conformance


  • Rail wheels adjustable to Standard and Broad Gauges.
  • The gauge will be set to the customer’s request prior to leaving the Harrybilt plant.
  • All wheels meet the P/D ratio.
  • All wheels are insulated with removable circuit bridge incorporated.
  • Braking accomplished by original rubber wheel rear axle and hold at minimum grade of 1.30.
  • Machine conforms to relevant sections of AS7500 series of standards.


Operation


  • Original operation of backhoe maintained.
  • Bucket uncrowded and fully lowered elevates front wheels for rail travel.


Construction


  • Rubber buffers attached to centralise elevated axle.
  • Wheels machined in Australia from Australian standard 4140 billets.
  • All materials conforming to Australian standards.
  • All hydraulic work is carried out to Australian standard AS2788 Hydraulic Fluid Power – General.
  • All hoses conform to Australian standards AS 3791.


Documentation


  • Test documentation supplied for the following,
  • Twist test
  • Brake performance test
  • Rolling stock outline test
  • Alignment test

Like to find out more about Rail Guidance Systems for Backhoes?

If you're interested in discovering more about Rail Guidance Systems for Backhoes from Harrybilt, you can download a copy of our brochure here in PDF format. This brochure contains additional product details and specifications that you may find helpful.  For any further enquiries, please don't hesitate to contact us.
